AIR HANDLING UNITS
SUPRA II
AIR HANDLING UNITS SUPRA II
SUPRA®II air handling units are the ideal driving component for IHS® humidification systems and are designed to deliver air conditioning solutions that are simple in concept but technologically advanced.
They ensure precise control of temperature, humidity, and air quality, providing optimal conditions for production processes and operator well-being
OPERATING PRINCIPLE OF AIR HANDLING UNITS (AHUs)
The air, recirculated from the production area or fully supplied from outside, is filtered with appropriate efficiency to remove dust, particulate matter, and airborne contaminants.
SUPRA®II air handling units, driven by high-efficiency IE5 brushless motors with variable capacity and integrated drives—the same technology used to power the IHS® system pump—represent the perfect balance between operational simplicity and advanced technological performance.
They are designed to ensure simple, fast, and cost-effective electrical installation. The only power supply required is for the motor drives, while all field sensors and actuators are interconnected via Modbus technology. This single-line communication system enables real-time field feedback transmission and comprehensive monitoring of the complete installation.
FILTRI A CARTUCCE ...
IHS® – THE CORE OF THE AIR HANDLING UNIT (AHU) SYSTEM

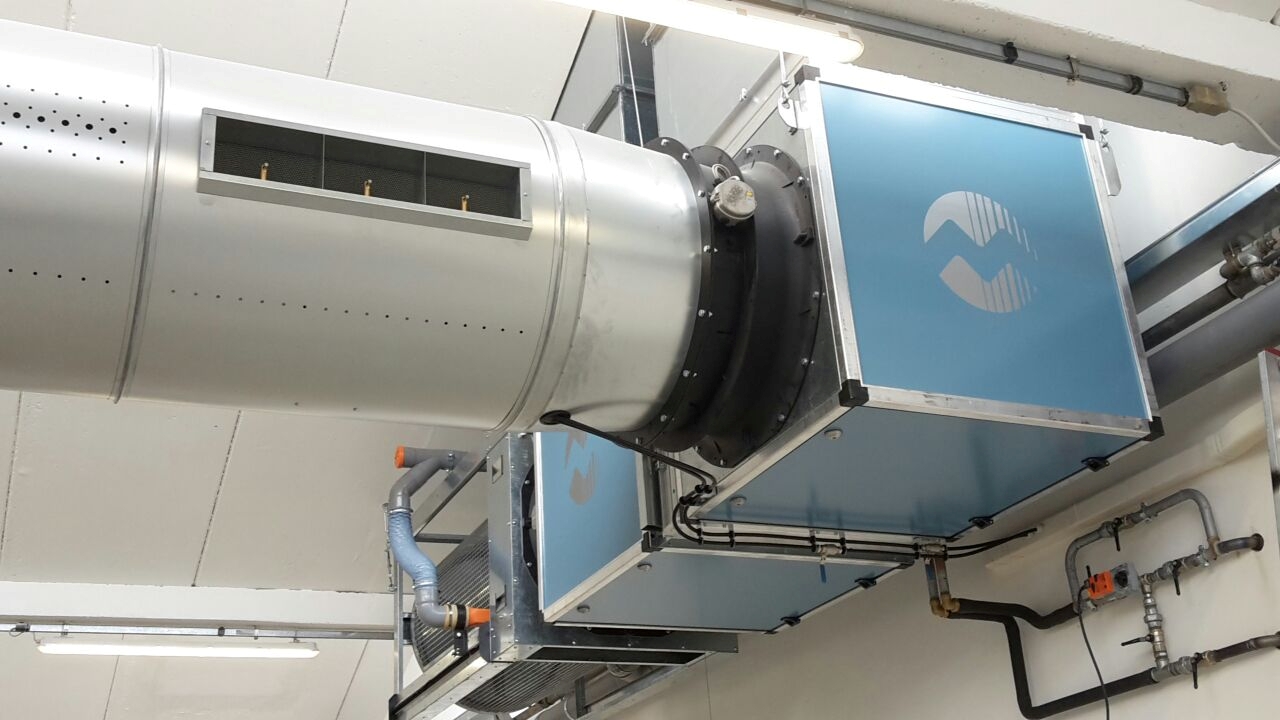

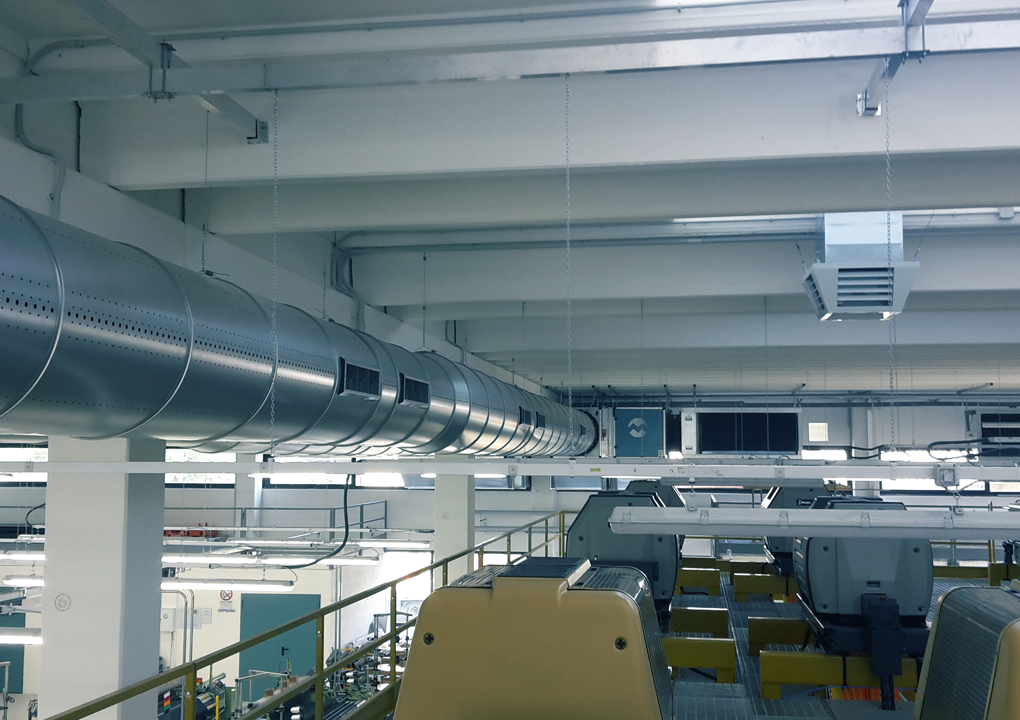

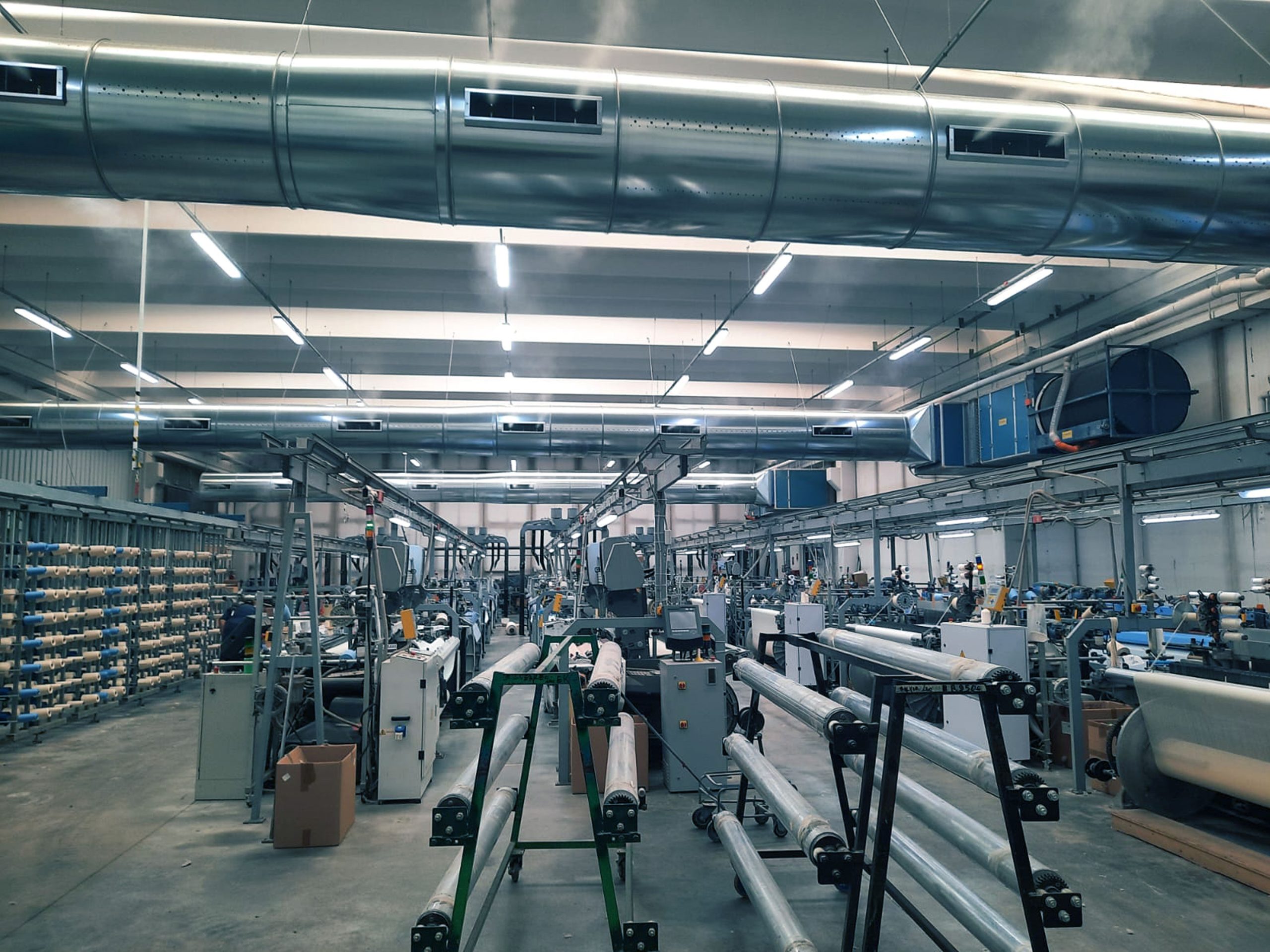

The operating principle of the IHS® system is based on the use of one or more circular air distribution ducts equipped with precisely engineered perforations along their circumference. The size and positioning of these openings are designed to create an optimal inductive effect, continuously drawing in ambient air and amplifying circulation up to ten times the airflow directly delivered by the fans.
A series of Pulsor diffusers inject finely atomised osmotised water into a laminar airflow. Within approximately two metres, the water is fully evaporated, preventing any droplet formation and ensuring unprecedented air saturation levels, while maintaining a completely dry air distribution system.
ADVANTAGES OF SUPRA®II AIR HANDLING UNITS
- High energy efficiency: COPH exceeding 40;
- High saturation efficiency (SEH): up to 100%;
- Compliance with hygiene standards: the only adiabatic saturation system compliant with the VDI 6022 standard;
- Superior humidification and cooling capacity compared to conventional systems;

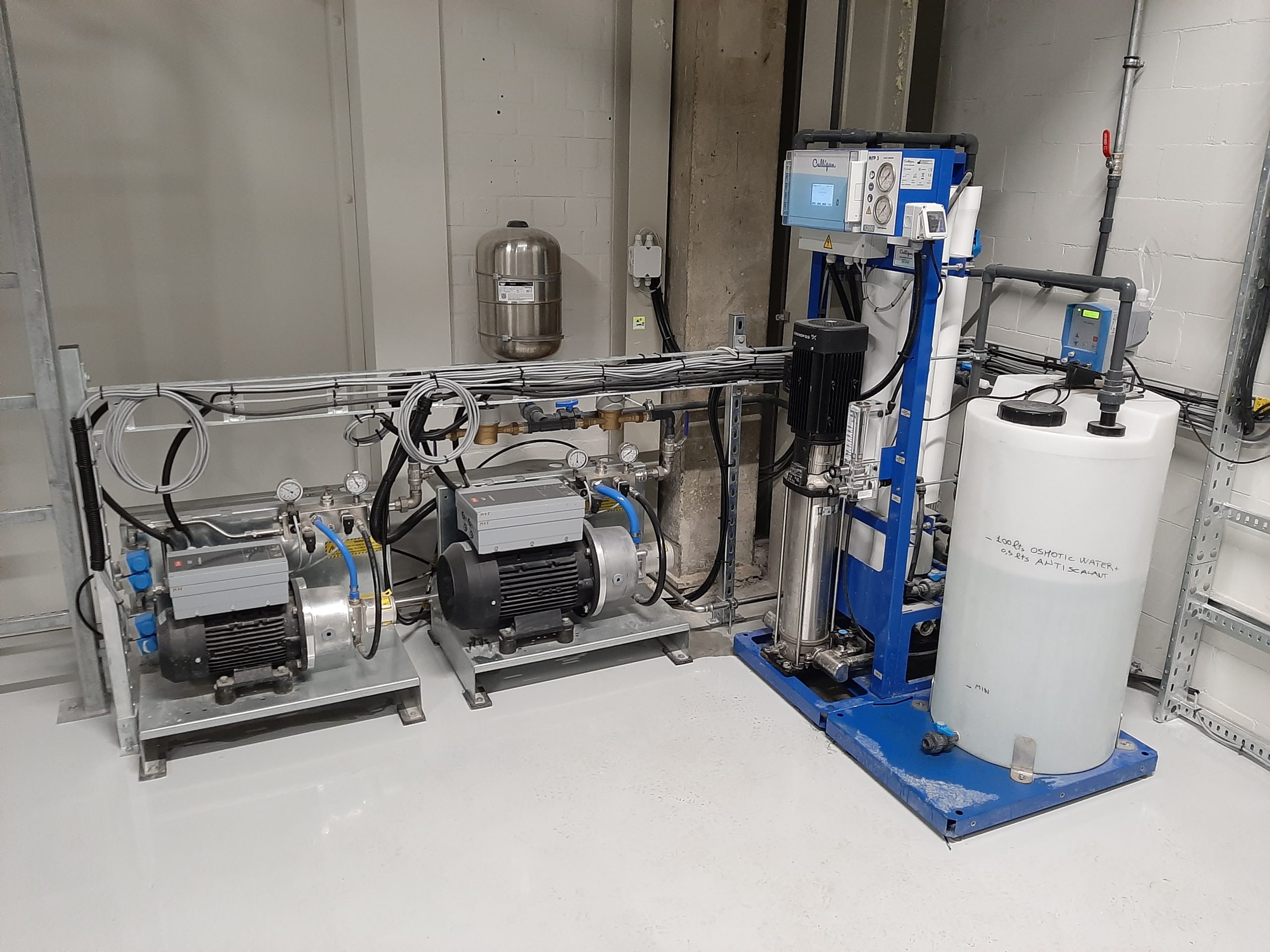

- Maintenance-free operation: stainless steel volumetric pump lubricated by water, without valves, mechanical seals, or oil sump;
- Uniform and stable humidity levels throughout the treated environment;
- Prevention of bacterial and biofilm growth;
- Elimination of corrosion risks on system components;
- Ability to supply low-temperature air directly into the production area without condensation issues;
- Reduced electrical energy consumption;
- No wastewater discharge;
- Air distribution system with completely dry ductwork.
Aeris is the ideal partner to improve comfort and productivity in your industrial environment with our customised solutions.
Request a free technical evaluation to identify the most suitable solution for your application.
FILTRI A CARTUCCE ...
APPLICATIONS AND INDUSTRIES
These systems are used across a wide range of industrial sectors, including:
